Nanocoatings applied on glass and ceramic surfaces reduce damage resulting from pollution, and icing, and provides acid rain-repellent features. Nasiol products under this category can be applied on a variety of surfaces such as building glass facades, vehicle windows, bath sink, tiles, shower cabins, hotel rooms, green houses, and all others. Our products do not contain PFOS/PFOA. They are eco-friendly, non-toxic, safe and REACH compliant products.
WATER REPELLENT
NANO COATINGS
FOR GLASS AND
CERAMIC SURFACES

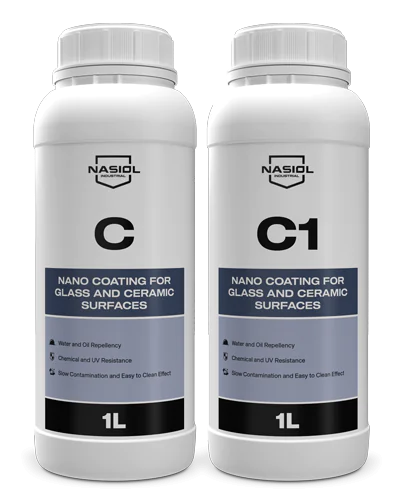

NASIOL C SERIES
APPLICATION OPTIONS
-Manual
-Pressurized Spraying
CURING OPTIONS
– Room Temperature
– High Temperature
Surface Gains
-Transparent nano coating
-Hydrophobicity
-Oleophobicity
Benefits
– Chemical protection
– UV protection
– Slow contamination
– Easy clean
– Anti-icing
Benefit Outcomes
– Extends lifetime
– Saves money
– Keeps appearance
– Prevents fungi
– Less lime stain
– Less icing
Applicable Surfaces
Glass buildings, balconies, shower cabins, showcases, windows, commercial cabinet doors, mirrors, solar panels, glass tables/coffee tables, glass surfaces of air/land/sea vehicles, glass machine/appliance parts, and factory production areas where transparency/cleanliness is important (camera, sensor, lens, observation window), wet ceramic areas (pool and its surroundings, bathroom, terrace), vitrified surfaces (washbasin, toilet bowl) etc.
USAGE OF NASIOL C SERIES ON GLASS SHOWER CABINS
Nasiol C Series Nano Coatings form a long-lasting, invisible, easy to clean and protective nano texture on glass shower cabins.
Nasiol C series nano coated surfaces make it difficult for the lime to adhere to the glass surfaces where it is applied. Stains formed over time can be easily cleaned with less detergents and less water.
- Less and faster cleaning: Limescale no longer bonds with the surface.
- Clean without any cleaning agent and less water. Save your cleaning costs.
Technical Specifications
| C | C1 | |
|---|---|---|
| Appearance | Colorless Liquid | Colorless Liquid |
| Chemical Resistance | 13>pH>1 | 12>pH>1 |
| Saltwater Resistance | ✓ | ✓ |
| Moisture Resistance | ✓ | ✓ |
| Dry Film Thickness | 75-100 nm | 75-100 nm |
| Consumption per Unit Area (Manual Application) | 5 mL/m² | 5 mL/m² |
| Density @23°C | 0.81 g/cm³ | 0.80 g/cm³ |
| pH Value | 1.9 - 2.2 | 1.9 - 2.2 |
| Transparency | 99% | 99% |
| Light Refractive Index | 1.625 (Glass) | 1.625 (Glass) |
| Application Temperature | 5°C/30°C (≤50% RH) | 5°C/30°C (≤50% RH) |
| Temperature Durability | 275°C | 275°C |
| Water Contact Angle | 106° @10 µL | 102° @10 µL |
| Water Contact Angle After “3000” Wet Scrub (ISO-11998:2006) | 100° @10 µL | 96° @10 µL |
| Water Sliding Angle | 15° @60 µL | 28° @60 µL |
| Oil Contact Angle | 84° @10 µL | 72° @10 µL |
| Shelf Life | 2 years when unopened, 1 month after opening | 2 years when unopened, 1 month after opening |
| Durability | Up to 2 years | Up to 1 year |
